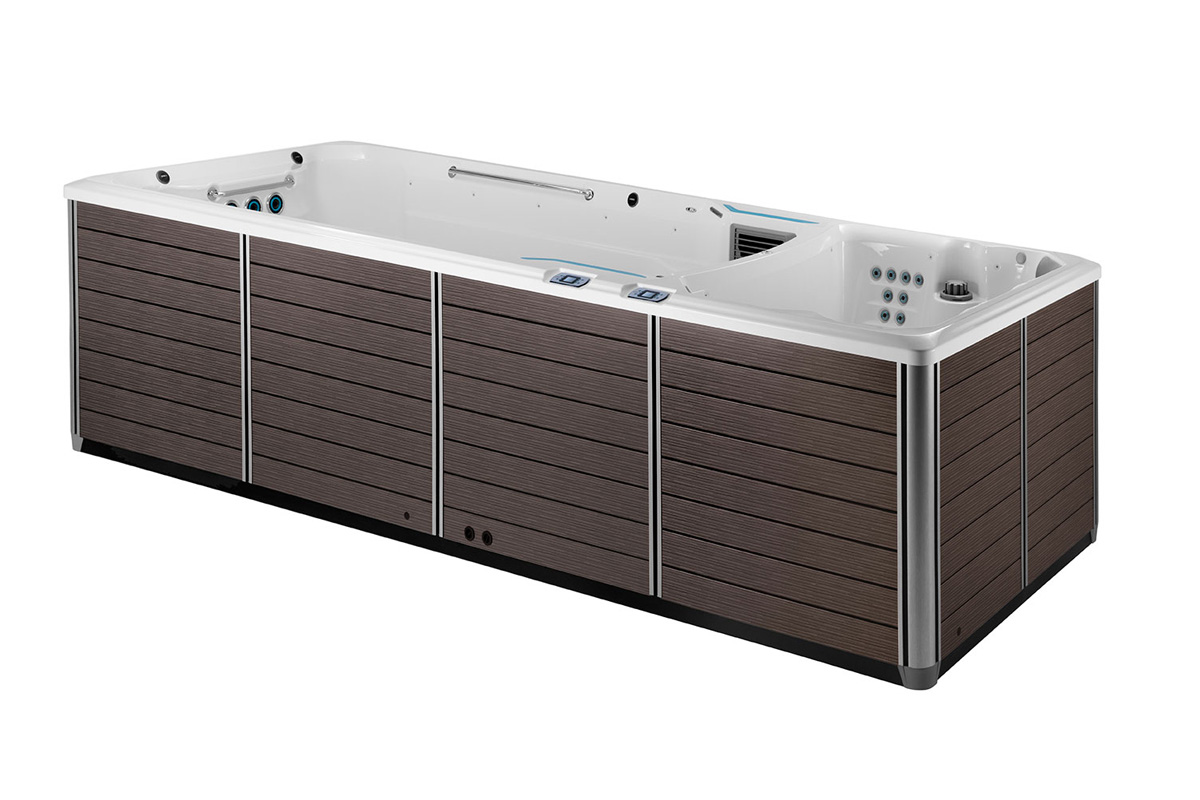

X2000 SwimCross™ Exercise Systems
Exercise, play and relax, all in the comfort of your backyard, with the SwimCross™ Exercise Systems X2000. Swimming, water exercise, family time and relaxation with hot water therapy are all possible with the right temperature at the right time.
The dual-temperature X2000 boasts the largest swim and exercise area of all Endless Pools® Fitness Systems with the added benefit of a separate spa area with seating for four and independent temperature controls. The five airless swim jets provide excellent resistance for swimming and exercise, while the sculpted spa seating with hydromassage jets pamper tired muscles after your workout. With the X2000 the opportunities for wellness at home are limitless.
|Spec||58″ Swim and Spa||Swim Side||Spa Side|
|Dimensions||20' L X 58" H X 89" W||15' L X 58" H X 89" W||5' L X 38" H X 89" W|
|Water Capacity||2,350 Gallons||2,000 Gallons||350 Gallons|
|Weight||3,460 Lbs (Dry) / 24,810 Lbs (Filled*)||3,460 Lbs (Dry) / 24,810 Lbs (Filled*)||3,460 Lbs (Dry) / 24,810 Lbs (Filled*)|
|Shell Color Options||Alpine White or Ice Gray||Alpine White or Ice Gray||Alpine White or Ice Gray|
|Cabinet Color Options||Dark Mocha or Gray Oak||Dark Mocha or Gray Oak||Dark Mocha or Gray Oak|
|Swim Technology||5 Swim Jets - Max 320 Gallons Per Minute||5 Swim Jets - Max 320 Gallons Per Minute||5 Swim Jets - Max 320 Gallons Per Minute|
|Swim Jet Pumps||2.5HP XP3 Continuous Duty; 5.2 HP Breakdown Torque - (1) Single Speed & (1) Dual Speed"2.5HP XP3 Continuous Duty 5.2 HP Breakdown Torque - (1) Single Speed & (1) Dual Speed"||2.5HP XP3 Continuous Duty; 5.2 HP Breakdown Torque - (1) Single Speed & (1) Dual Speed"2.5HP XP3 Continuous Duty 5.2 HP Breakdown Torque - (1) Single Speed & (1) Dual Speed"||2.5HP XP3 Continuous Duty; 5.2 HP Breakdown Torque - (1) Single Speed & (1) Dual Speed"2.5HP XP3 Continuous Duty 5.2 HP Breakdown Torque - (1) Single Speed & (1) Dual Speed"|
|Substructure||14-Gauge Galvanized Steel Frame||14-Gauge Galvanized Steel Frame||14-Gauge Galvanized Steel Frame|
|Base Pan||Thermoformed ABS Base Pan||Thermoformed ABS Base Pan||Thermoformed ABS Base Pan|
|Energy Efficiency||Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law||Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law||Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law|
|Music Option||8 Speakers + Subwoofer, Bluetooth® Enabled||8 Speakers + Subwoofer, Bluetooth® Enabled||8 Speakers + Subwoofer, Bluetooth® Enabled|
|Cover & Lifter Options||Watkins® Bi-Fold Covers & Lifters VacuSeal® Cover System||Watkins® Bi-Fold Covers & Lifters VacuSeal® Cover System||Watkins® Bi-Fold Covers & Lifters VacuSeal® Cover System|
|Additional Options||CoolZone™ Cooling System, Floor Mirror, Gecko In.Touch™ WiFi and Mobile App, Rowing Kit, Swim Tether||CoolZone™ Cooling System, Floor Mirror, Gecko In.Touch™ WiFi and Mobile App, Rowing Kit, Swim Tether||CoolZone™ Cooling System, Floor Mirror, Gecko In.Touch™ WiFi and Mobile App, Rowing Kit, Swim Tether|
|Seats||Bench Seat, 4 Hydrotherapy Seats + Cool Down Seat||Bench Seat||4 Hydrotherapy Seats + Cool Down Seat|
|Hydrotherapy Jets - 34||2 Large Jets 2 Rotary Jets 4 Directional Jets 26 Mini Jets||Not Applicable||2 Large Jets 2 Rotary Jets 4 Directional Jets 26 Mini Jets|
|Hydromassage Jet Pump||2 - 2.5 HP Continuous Duty; 5.2 HP Breakdown Torque - 1 Speed Pumps||Not Applicable||2 - 2.5 HP Continuous Duty; 5.2 HP Breakdown Torque - 1 Speed Pumps|
|Control System||LCD Control Panel 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel||LCD Control Panel 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel||LCD Control Panel|
|Water Feature||3 Illuminated Waterfalls||2 Illuminated Waterfalls||1 Illuminated Waterfall|
|Water Management System||UVC + CD Ozone||UVC + CD Ozone||CD Ozone|
|Circulation Pump||High-Flow Circulation Pump, Filtration Pump||High-Flow Circulation Pump||Filtration Pump|
|Effective Filtration Area||200 Square Feet (4 x 50 Square Feet), 50 Square Feet||200 Square Feet (4 x 50 Square Feet)||50 Square Feet|
|Lighting System||14 Multi-Color LED Points of Light & 5" Main Light & LED Illumination Bar, 12 Multi-Color LED Points of Light||14 Multi-Color LED Points of Light & 5" Main Light & LED Illumination Bar||12 Multi-Color LED Points of Light|
|Insulation||Tri-Thermic® Barrier System, Full Foam Insulation||Tri-Thermic® Barrier System||Full Foam Insulation|
|Grab Rails||3 Stainless Steel Rails||3 Stainless Steel Rails||Not Applicable|
|*Includes water and 10 adults weighing 175 lbs. each|

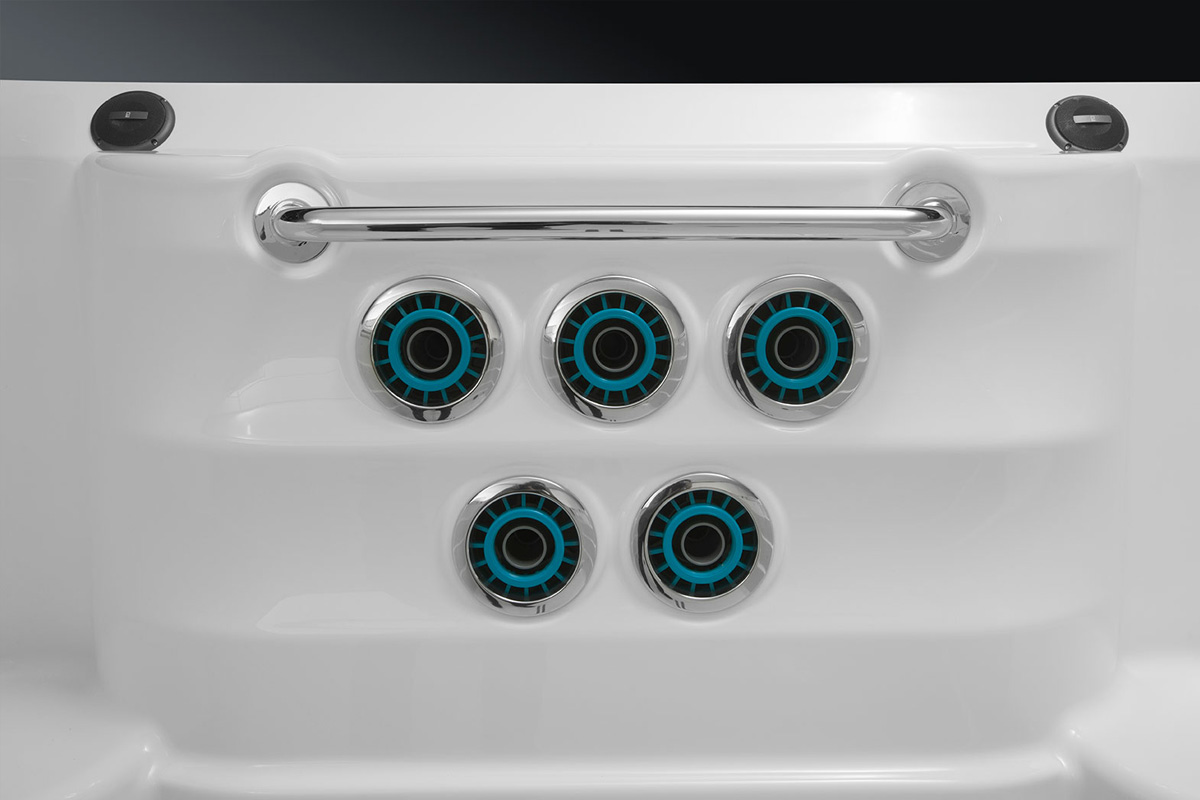

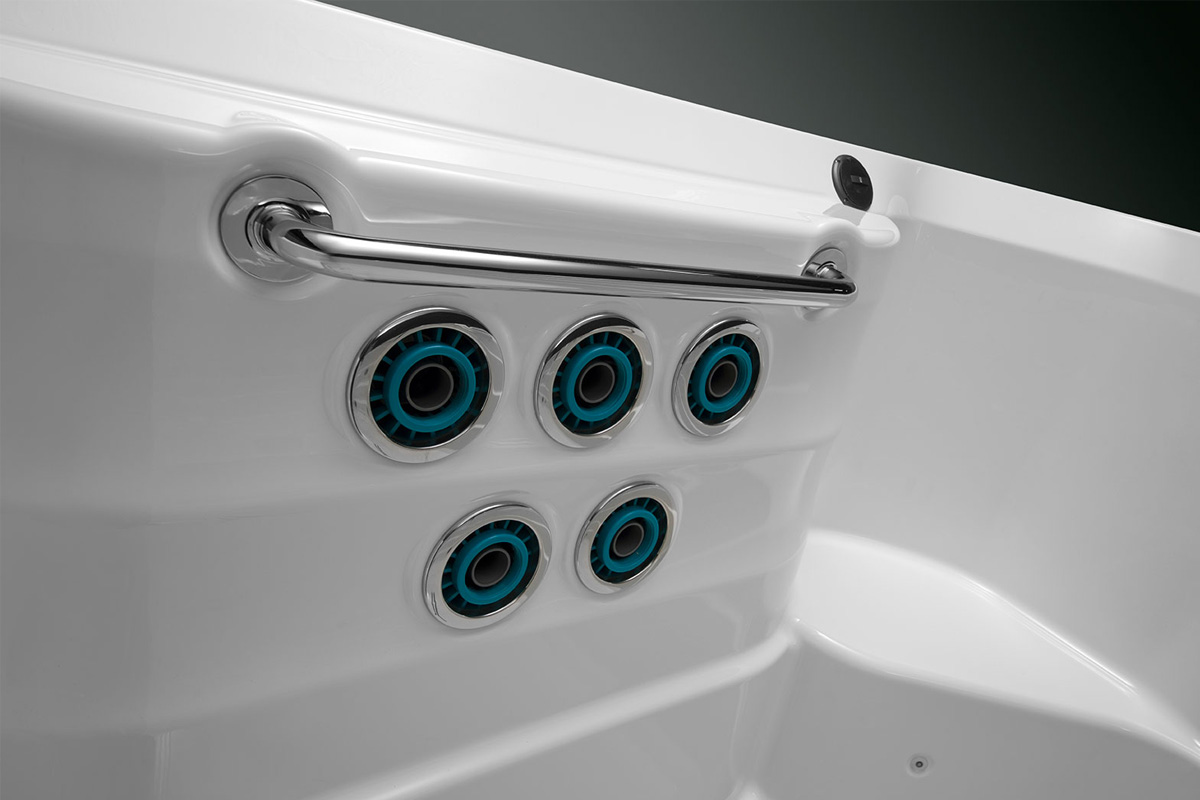

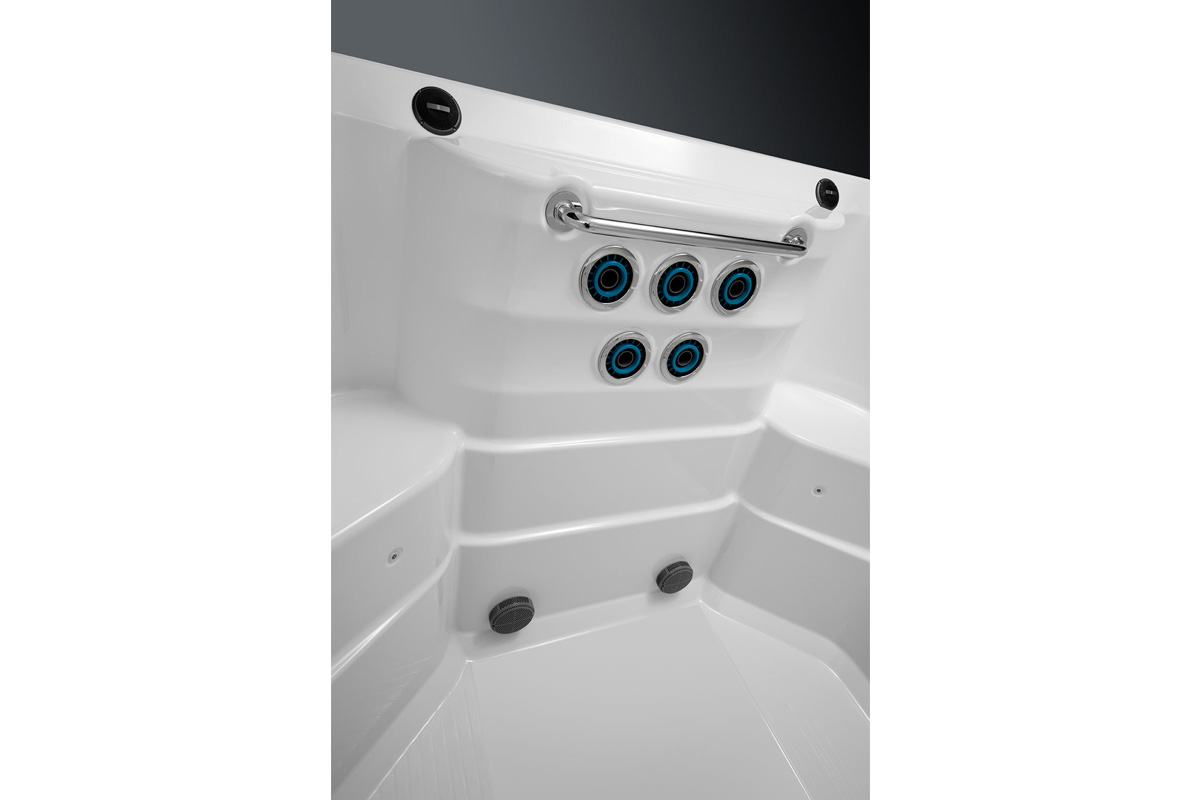

The swim jets in SwimCross Exercise Systems are designed for both swim and water-workout options suitable for all ages, sizes and skill levels. A total of five swim jets, driven by two pumps, provide a steady stream of water that is more powerful than the average jet. The swim jet uses a Venturi effect, not air, to draw-in or entrain more water, effectively multiplying the volume of water. This design feature results in stronger resistance for swimming with less turbulence than other swim spas on the market. And, swimmers will find it easier to stay centered and afloat, thanks to the jet configuration, which is designed for the top jets to provide resistance while the bottom jets provide lift. Simply toggle the three top jets between two speeds and the two bottom jets between on and off – a total combination of five output levels – for easy workout customization.

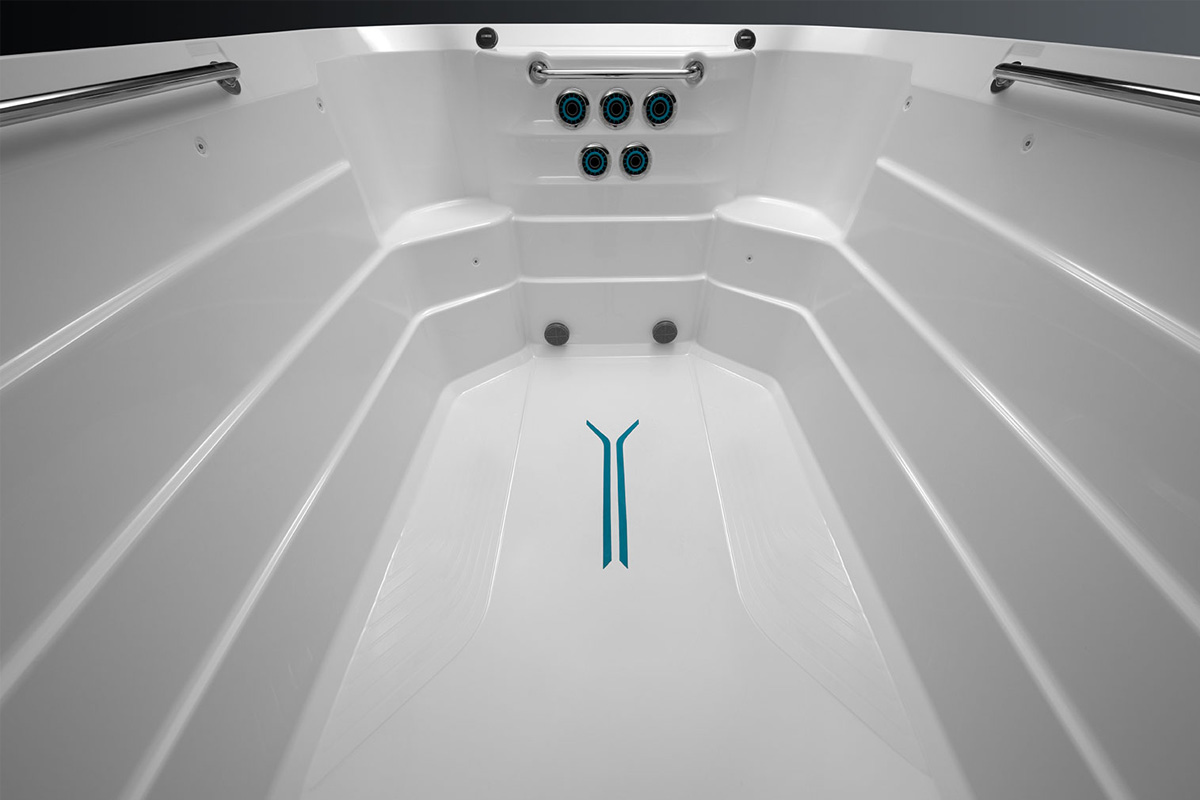

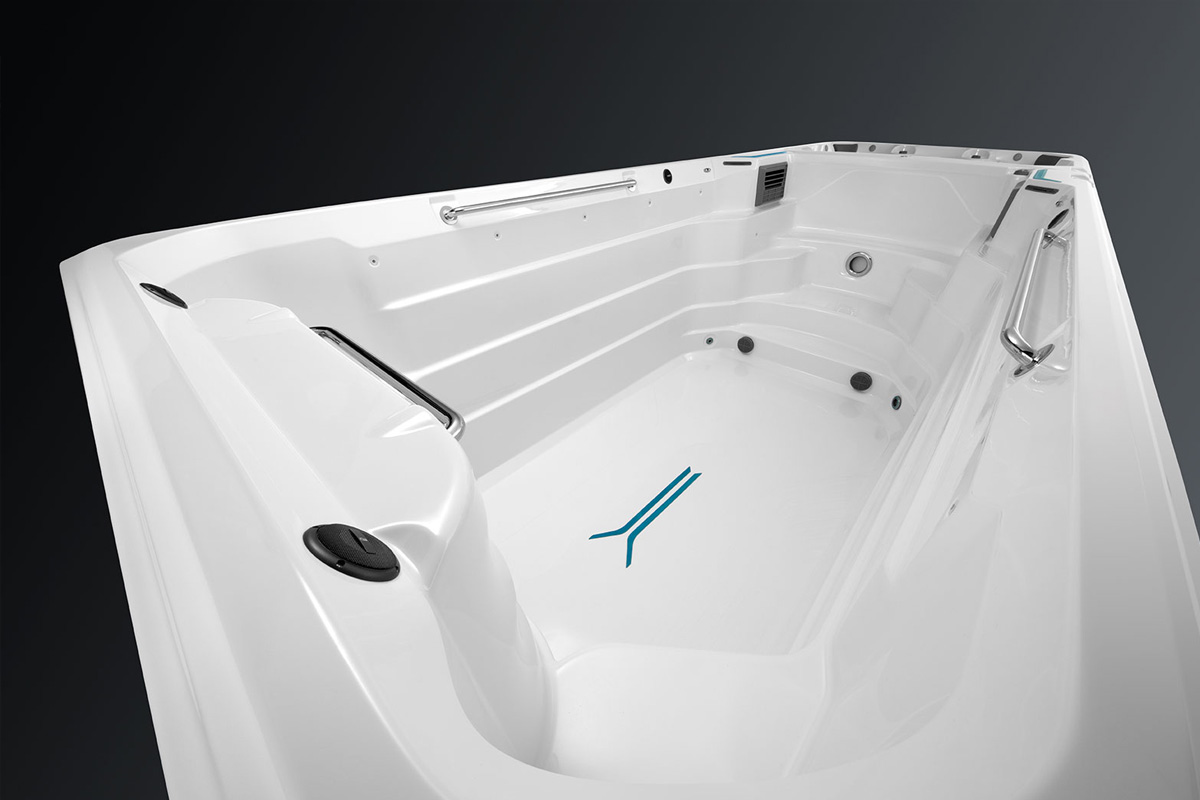

More Spacious Swim Area Than Ever Before
In designing the X2000, we optimized the swim side area by giving the hydrotherapy seats now have their own section. Moving the entry steps and filter to the back of the swim area provides even more space for rowing and resistance exercises.
Dedicated Spa Side with 4 Spa Seats with Hydromassage Jets Plus Cool-Down Seat
Following your workout, there is nothing like a “cool-down” in the comfort of spa seating where hydromassage jets soothe your muscles. Perfectly positioned in two captain’s chairs with pillows, plus two seats, four jet types are combined in unique configurations to deliver an ideal post-workout relaxation experience.
Mini Jet – A small and focused stream of water targets specific areas.
Directional Jet – Similar to the mini, the directional jet is focused but with a larger stream of water.
Rotary Jet – Same level of water pressure as the directional jet, but rotates for a soft tissue massage covering a larger area.
Cluster Jet – A unique soft tissue massage targets the lower back.
The stunning lighting delivers maximum design impact. It’s 5” main interior light and multi-color LED points of light provide ample brilliance and beauty. The three water features are also backlit for added elegance.
14-Gauge Steel Frame & ABS Base Pan
X2000 is built on an extremely durable, 14-gauge galvanized steel frame and ABS base pan. While many see this as an area to cut costs, Endless Pools went a cut above the rest by making this a standard feature. The structural elements of the steel frame and ABS base pan provide the ultimate strength to deliver confidence in ownership for years to come.
Water Management System
The X2000 features a dual water purification system that combines Ultraviolet C (UVC) with eco-friendly CD Ozone, commonly known as Advanced Oxidation Process (AOP), to neutralize contaminants. The continuous water rotation from the circulation pump, coupled with 200 ft. of filtration, ensures ease of maintenance and water that is always exercise-ready. On the spa side, CD Ozone keeps water fresh.
On the swim side, the Tri-Thermic™ Barrier System, a standard feature, provides three layers of insulation to conserve heat, enhance energy efficiency, and lower operating costs. The system’s three layers include a three-quarter inch, two-pound density EPS (Expanded Polystyrene) foam and reflective film attached to the inside of the cabinet, combined with a two-inch thick heat blanket made of high-quality recycled textile fibers and foil film, attached on the inside of the steel frame. Together these materials provide maximum thermal performance.
The spa side has been fully foamed for heat retention and energy efficiency.
The X2000 achieves certification to current California Energy Commission (CEC) and APSP 14 National Standards and meets 2018 CEC Standards.

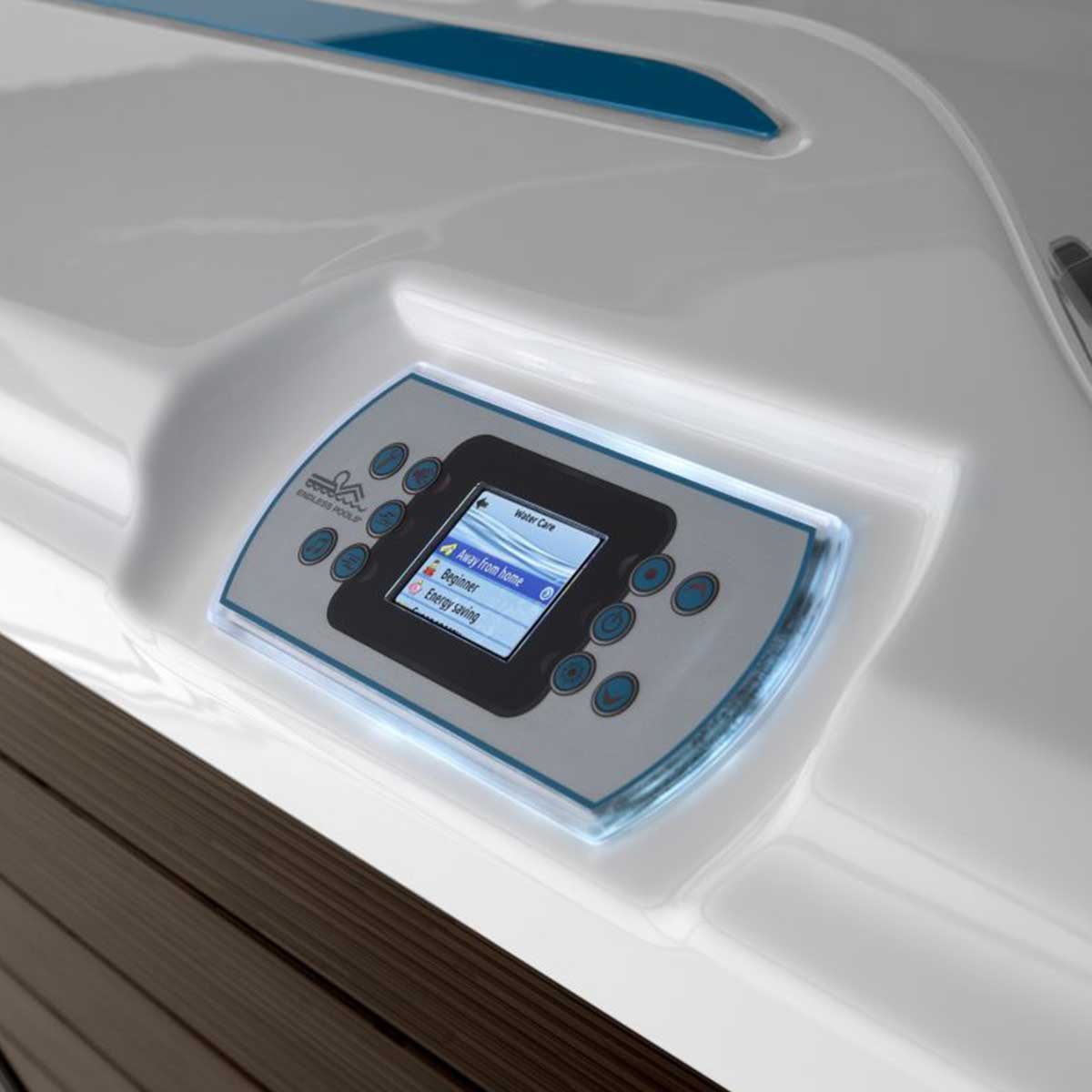

The X2000 features two LCD control panels that make it easy to navigate component controls on both side of the swim spa. Functions include on/off, water temperature and water care management, as well as control of the interior lighting and hydromassage jets.
Install the optional plug-and-play Gecko® In.Touch Wi-Fi and Mobile App and you’ll gain full control of the system’s temperature, lights and jets from any Wi-Fi-enabled tablet or mobile device.
Anchors and Handrails for Aquatic Fitness Accessories
Every Fitness System is equipped with built-in anchors to attach fitness accessories including an optional swim tether, row bar set and resistance bands. The convenient and sturdy handrails are also great for support during your resistance-training workout.
SwimCross Exercise Systems

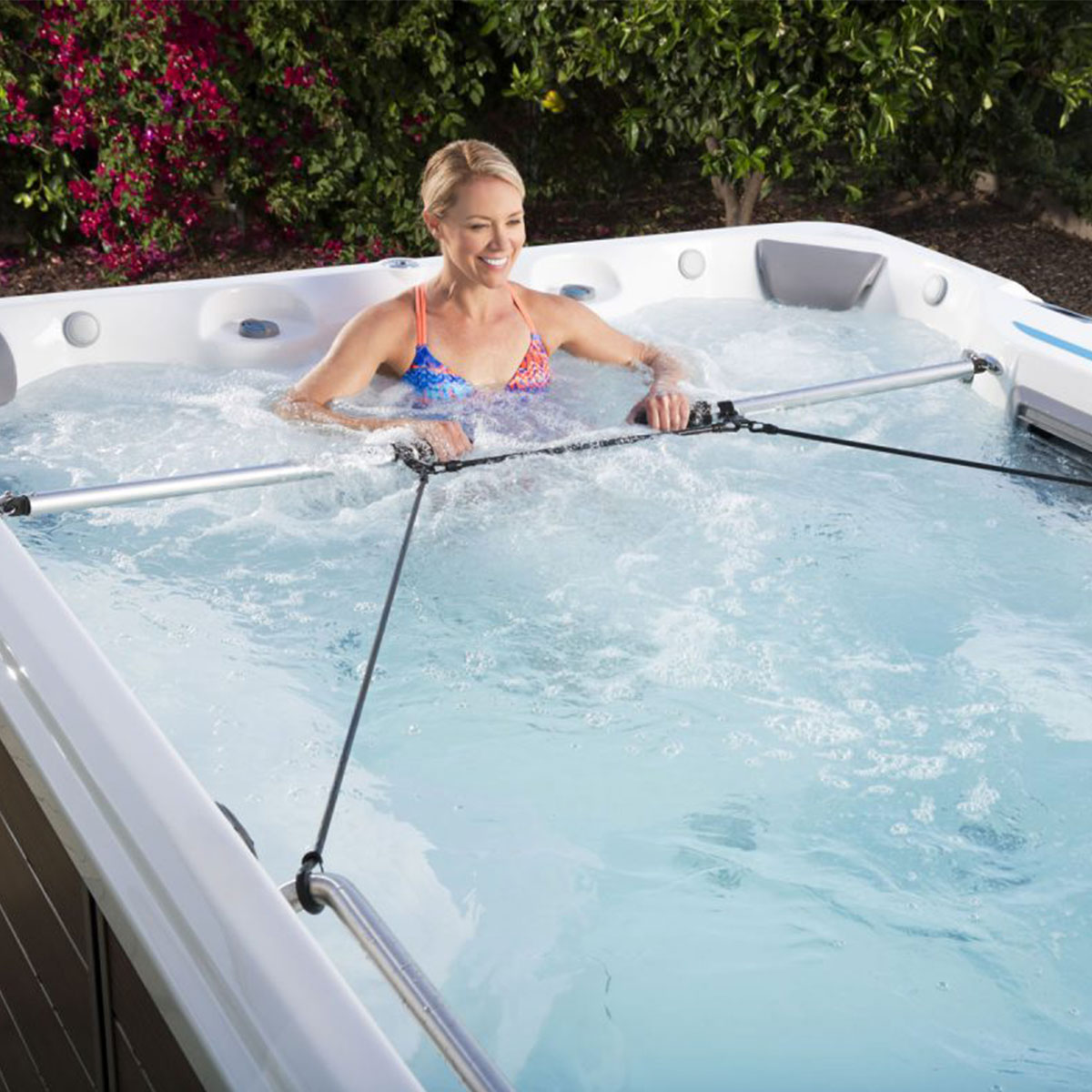

Rowing is an exceptional cardiovascular exercise that keeps the heart rate elevated and strengthens core muscles. Attach resistance bands to the sturdy handrails for added workout options.
Set up the performance of any Fitness or Exercise System with the optional rowing and resistance gear. Attach the optional row bars to the built-in anchors and/or handrails to experience a low-impact, full body workout.

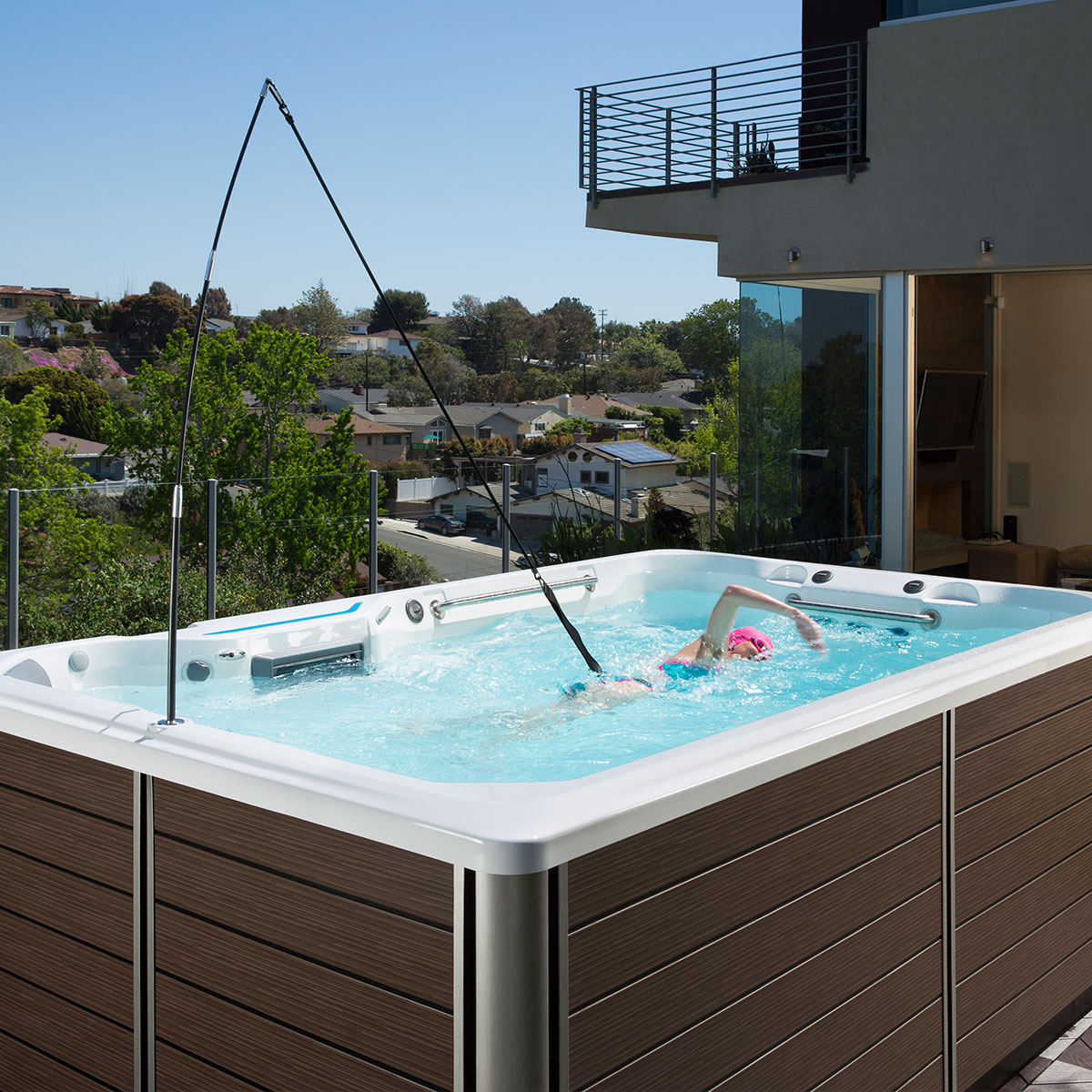

All models come equipped with an anchor for attaching our optional Swim Tether. For beginning swimmers or for anyone looking to improve his or her swimming form, it provides added stability and assistance in maintaining your body position in the current.
A real money-saver, the Watkins bi-fold cover helps maintain heat and reduce evaporation. It can be used on its own or with the Watkins Lifter System. The Watkins Lifter System lets you install the cover vertically, which is also a space saver.
The VacuSeal Lifting System’s unique design ensures a tight seal between covers, which prevents heat loss and evaporation and optimizes efficiencies. It uses a patented “Reverse Pneumatic Technology” which applies downward pressure on the cover to vacuum seal the two covers together, eliminating the center gap, commonly found with traditional covers. Also, this technology lends itself to easier operation of the cover system especially by a single user.

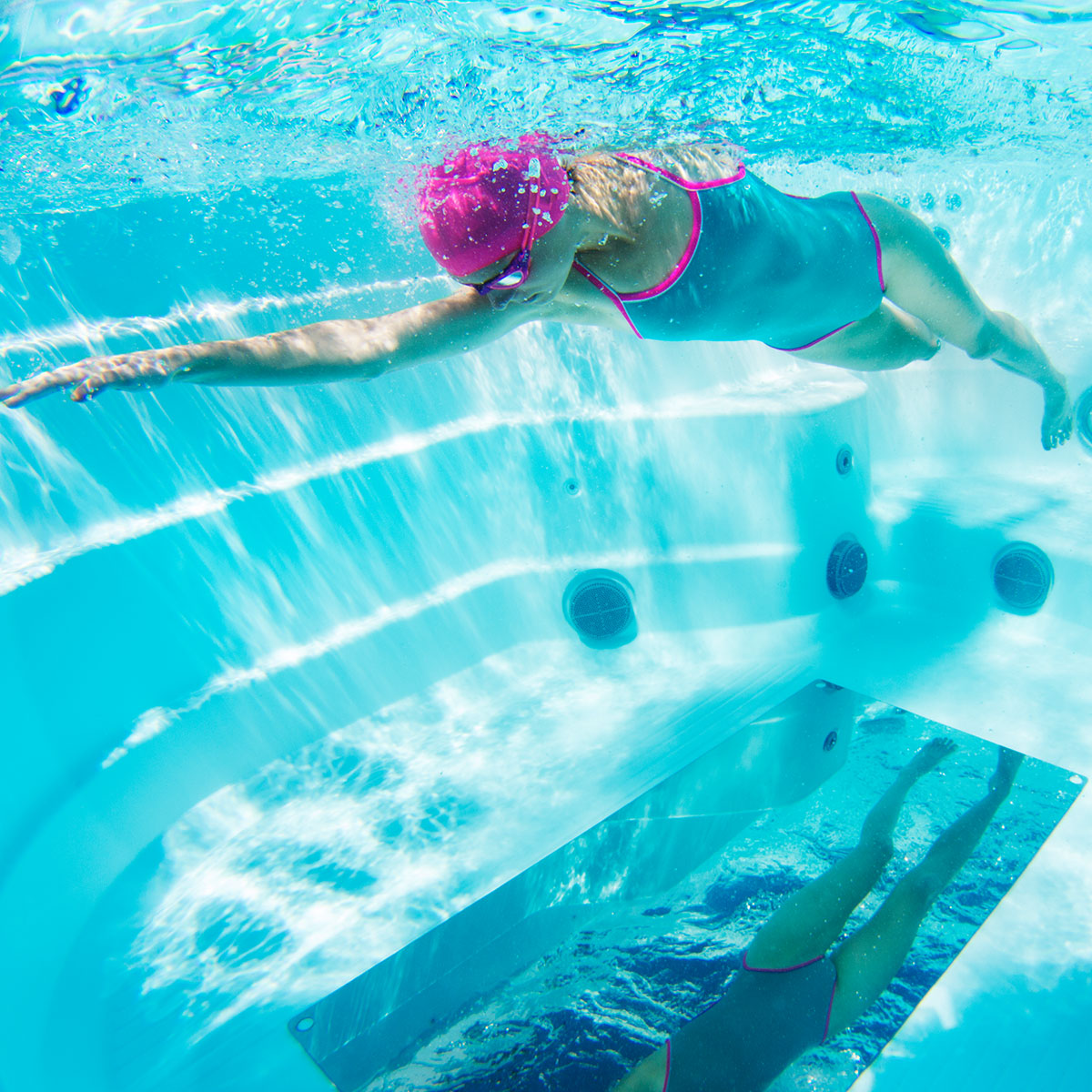

See yourself swim in place and refine your form for improved performance with the optional 24” x 51” stainless steel mirror. Placed on the floor of any Fitness or Exercise System, its weight distribution ensures that the mirror stays securely in place.
For exercise or backyard enjoyment, nothing sets the mood like our optional, integrated 8-speaker system and subwoofer. It’s easy to set up: simply pair any Bluetooth-enabled device to the system through the control panel to listen to your favorite music anytime.
Ask your Endless Pools® retailer about installation of the optional plug-and-play Wifi and Mobile App. With this added feature, you’ll gain full control of the system’s temperature, lights and jets from any Wifi-enabled tablet or mobile device.
Put full workout functionality at your fingertips! With the Fit@Home App you can adjust the speed controls, monitor workout pace, duration and time, and set up workout programs specific to your goals from your smartphone or tablet.
Ideal for warm climate areas and for use during summer months, when cooler water temperatures are preferred, CoolZone works with the Fitness System heater to efficiently cool or heat the water.

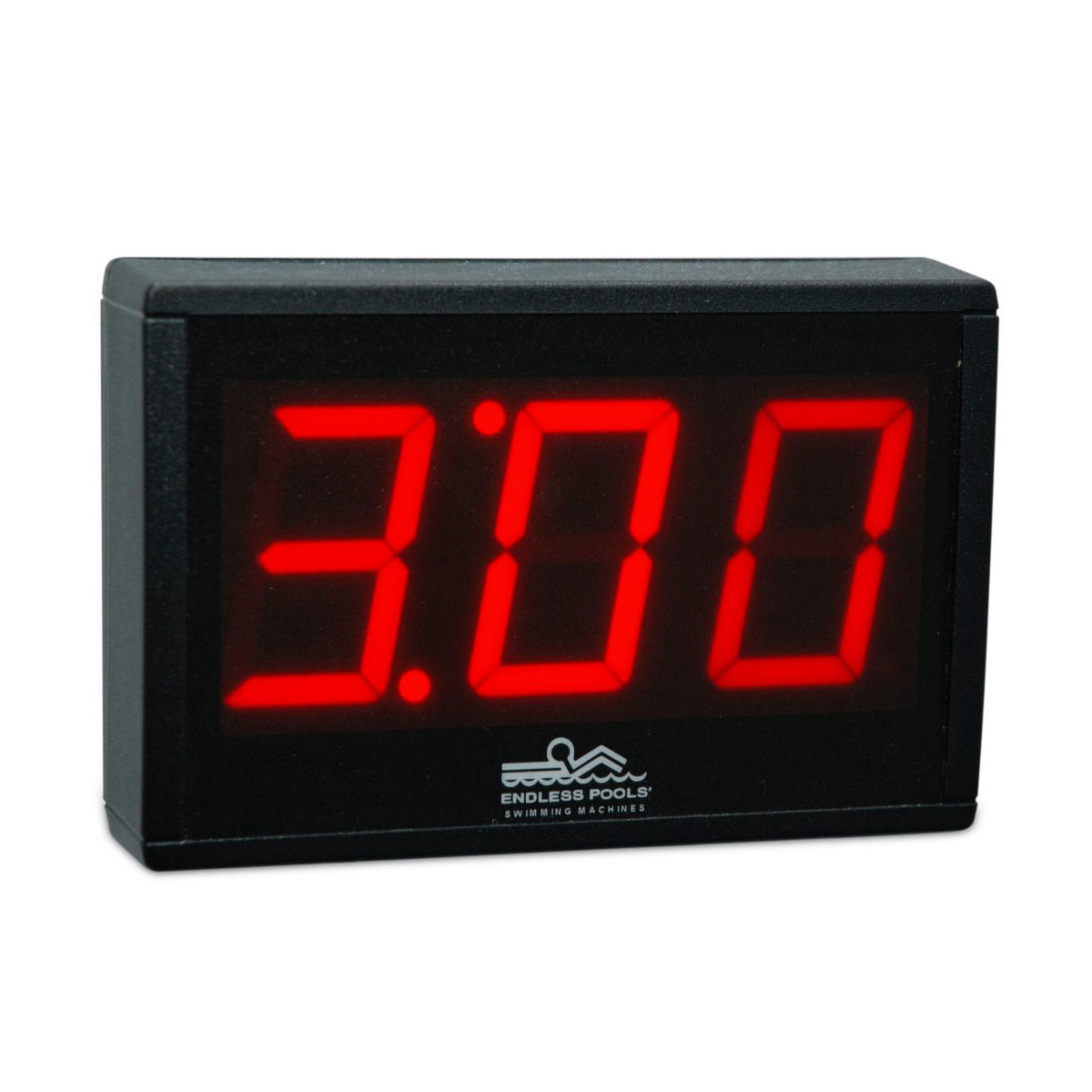

The optional pace display is a necessity for any swim machine or treadmill user who wants to measure
performance. It allows for easy reading of the swim current pace and/or treadmill speed, and can be
toggled from meters to yards or viewed as a percentage of the top speed. With individual pace displays for swim machine and treadmill, Fitness System owners can use both simultaneously for a more effective workout.
